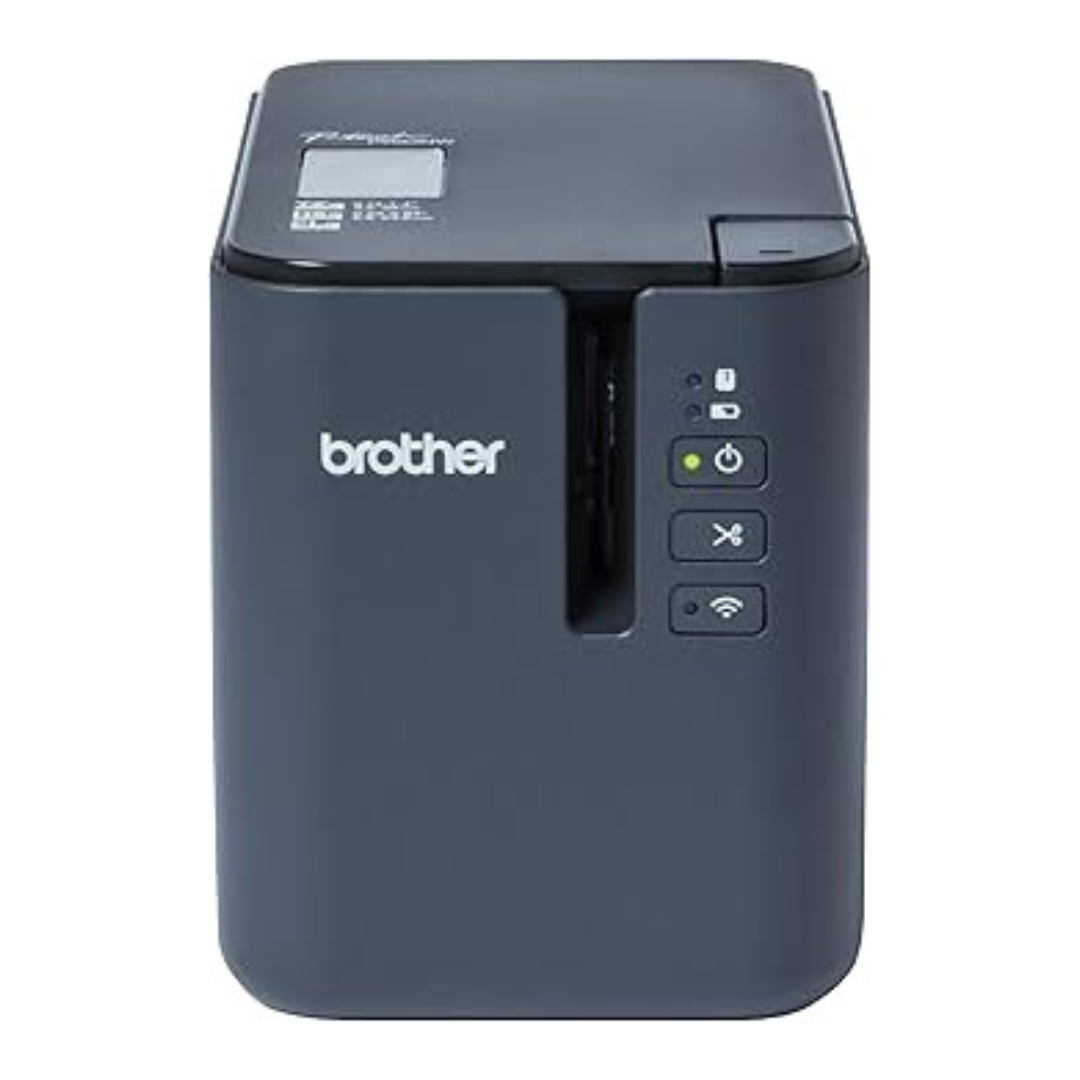

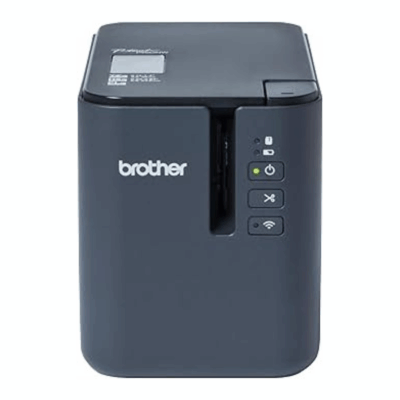

Brother PT-P950NW

Description

The Brother PT-P950NW is a high-performance professional label printer designed for industrial, electrical, and office applications where durability, precision, and network flexibility are essential. With support for label widths up to 36 mm, this compact desktop printer produces sharp, laminated labels that can withstand heat, moisture, chemicals, and heavy handling. It delivers print resolutions up to 360 × 720 dpi for crisp graphics and text, and print speeds reaching 80 mm per second for high-volume environments.

Built with multiple connectivity options — including USB, LAN, and Wi-Fi — the PT-P950NW easily integrates into wired or wireless networks, allowing multiple users to access it from computers, mobile devices, or network servers. It also supports optional Bluetooth for added flexibility. The printer can operate with Brother’s P-touch Editor software for label design and provides SDK support for app and system integration, making it ideal for businesses and IT environments that require custom labeling workflows.

Compact yet durable, the device includes an automatic full cutter for easy label separation and a “crack-and-peel” function to simplify label application. Compatible with a wide range of Brother label tapes such as TZe, HGe, HSe, and FLe (including heat-shrink and flexible types), it’s perfect for cable labeling, asset tagging, barcoding, and signage. The PT-P950NW can run on AC power or an optional rechargeable battery base, providing flexibility for both stationary and mobile use.

🔹 Main Features and Key Points

• High-Resolution Printing: Up to 360 × 720 dpi for clear text, barcodes, and symbols.

• Fast Performance: Prints up to 80 mm per second, ideal for high-volume labeling.

• Versatile Connectivity: USB, wired LAN, Wi-Fi, and optional Bluetooth support.

• Wide Tape Compatibility: Works with 3.5 mm – 36 mm laminated tapes, including heat-shrink tubes.

• Professional Integration: Supports P-touch Editor software and SDKs for customized system integration.

• Auto Cutter Included: Full-cut and half-cut options with easy peel functionality.

• Portable Power Options: Operates via AC adapter or optional Li-ion battery.

• Durable Labels: Resistant to heat, water, and chemicals — suitable for industrial and office environments.

• Compact and Efficient Design: Small footprint fits easily on desks or workstations.

• Barcode and Symbol Printing: Supports 1D and 2D barcode formats for inventory and asset management.

⚙️ Technical Highlights

• Print Technology: Thermal transfer

• Print Resolution: 360 × 360 dpi (standard), up to 360 × 720 dpi (high-resolution mode)

• Print Speed: Up to 80 mm/sec (high-speed mode)

• Tape Widths Supported: 3.5 mm – 36 mm (maximum print width 32 mm)

• Cutter Type: Automatic full cutter / half-cut with peel assist

• Connectivity: USB 2.0, USB-host, LAN 10/100 Base-T, Wi-Fi 802.11 b/g/n, optional Bluetooth

• Power Supply: AC adapter (24 V DC) or optional rechargeable Li-ion battery

• Dimensions: Approx. 118 mm (W) × 192 mm (D) × 146 mm (H)

• Weight: Approx. 1.5 kg (without tape cassette or battery)

• Operating Environment: 10 °C – 35 °C, 20 % – 80 % humidity

• Compatible Media Types: Laminated tapes, flexible labels, fabric labels, heat-shrink tubes
